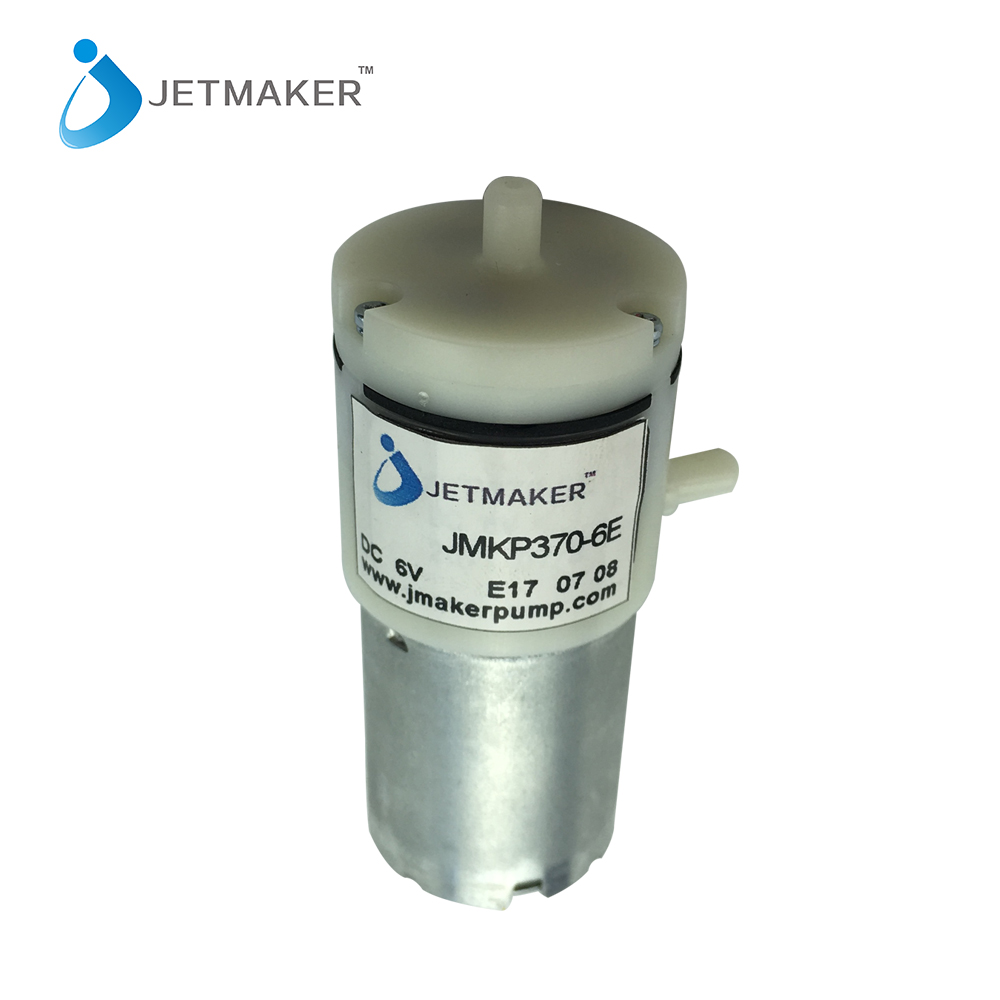

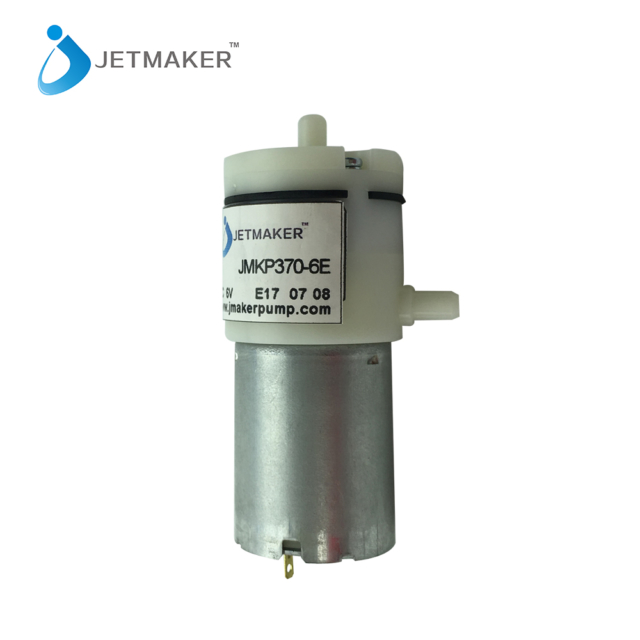

DC 6V/9V Micro Vacuum Pump 12V DC Mini Air Pump For Electric Rice Cooker
Mainly uesd for electronic sphygmomanometer, massager, blood pressure monitor, eye nanny, fish tank, intelligent cleaner and other equipment products.
Product Dimension：
| Product Specification： | |
| Rated Voltage | DC 12V |
| Rated Curren | ≤600mA |
| Air Flow | 4-5LPM |
| Maximum Pressuer | ≥80Kpa |
| (300mmHg) Leakage | ≤3mmHg/min |
| Reatart Voltage | ≤DC 9.6V |
| Noise | ≤65dB (30cm away) |
| Rated Life | ≥30000 cycles |
| Key | Description |
| 1 | Upper Housing with Clips |
| 2 | Check Vlave Assembly |
| 3 | Diaphragm Assembly(including screws) |
| 4 | Lower Housing Assembly |
| Key | Description |
| 5 | Motors |
| 6 | Connectors |
| 7 | Pump Head Assembly |
| 8 | Side Clips |
 |
Shipping Information | |
| Unit Weight: | 2.7kgs | |
| Unit Size: | 26*12.5*10.5CM | |
| Master Carton Qty: | 10pcs | |
| Master Carton Size: | 63*29*22.5CM | |
| Master Carton Weight: | 28kgs | |
