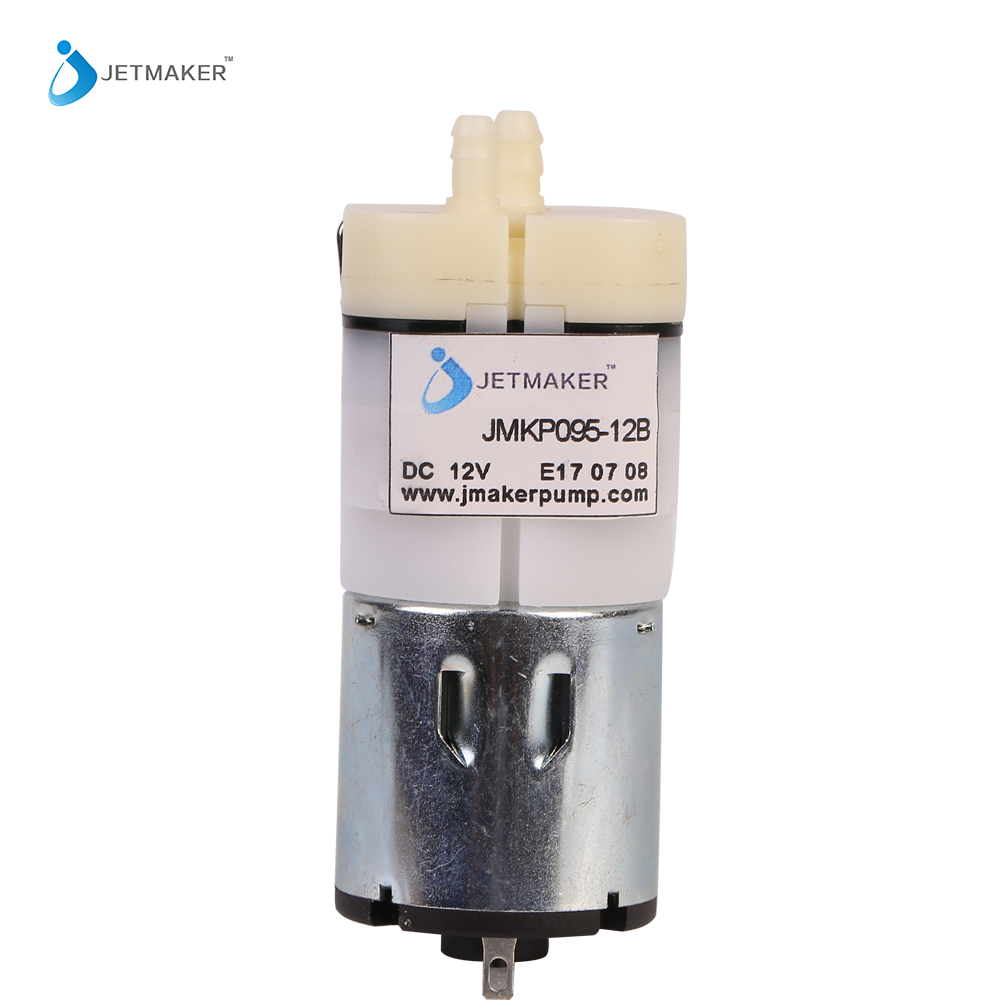

JMKP095-12B 12V dc mini high pressure air pump for massager

Mainly used for air massage chair, massager, air mattress and other equipment products.


Product Dimension:


Product Specification:
 Rated Voltage DC 12V
 Rated Curren ≤600mA
Air Flow 4-5LPM
Maximum Pressuer ≥80Kpa
(300mmHg) Leakage ≤3mmHg/min
Reatart Voltage ≤DC 9.6V
Noise ≤65dB (30cm away)
Rated Life ≥30000 cycles

Key Description
1 Upper Housing with Clips
2 Check Vlave Assembly
3 Diaphragm Assembly(including screws)
4 Lower Housing Assembly
Key  Description
5 Motors
6 Connectors
7 Pump Head Assembly
8 Side Clips

                                Shipping Information

Unit  Weight:

2.7kgs
Unit Size: 26*12.5*10.5CM
Master Carton Qty: 10pcs
Master Carton Size: 63*29*22.5CM
Master Carton Weight:   28kgs
